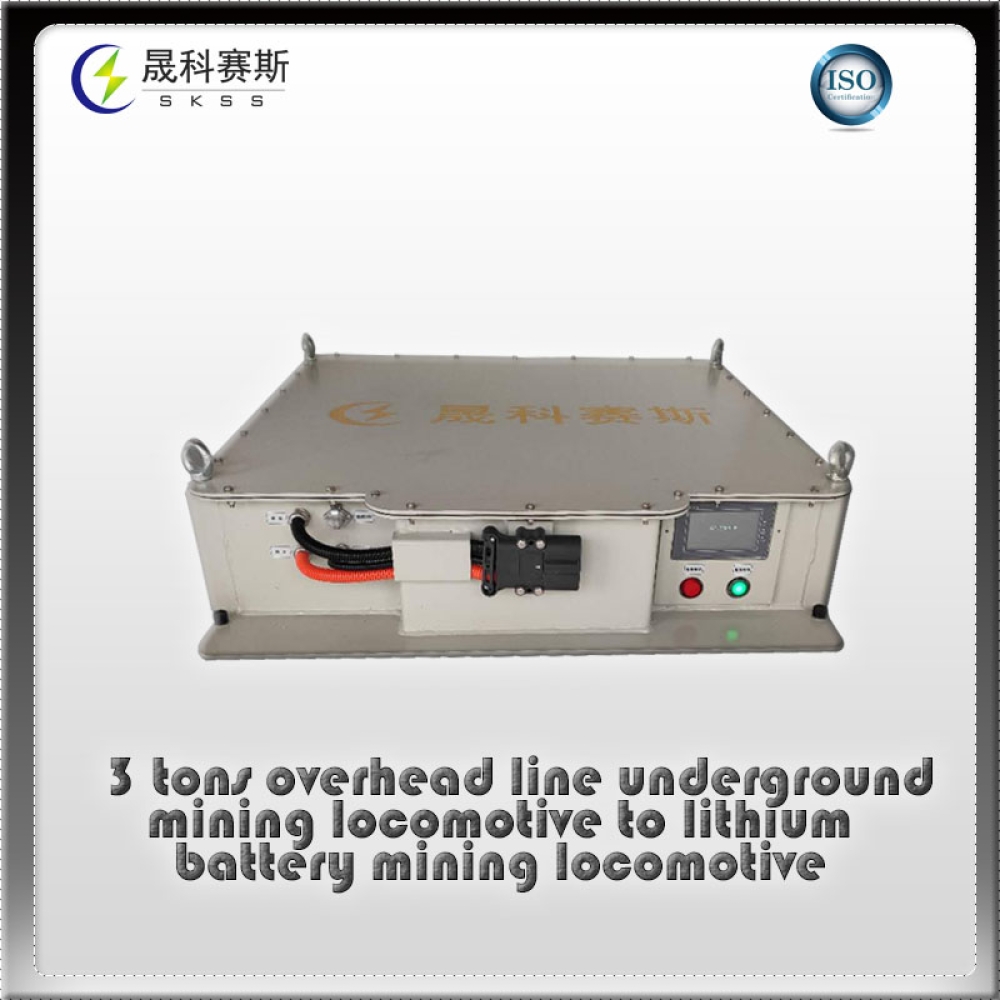

3 tons overhead line underground mining locomotive

Model: DXBL30720/256C
Rated voltage: 256V
Rated capacity: 120Ah/ 155Ah
Electricity：30.72KW.h/39.68KW.h
Dimension: 1400*918*270mm / 1400*918*410mm
Weight: 400kg
Charging time: ≤4h
Temperature range: -20°C~60°C
Warranty: 3 years, lifelong maintenance
Protection function: low battery reminder, over-current, over-temperature, short-circuit protection, insulation detection, over-voltage, waterproof, low temperature protection, etc.
Scope of application: 3 tons overhead line motor truck, mining battery car, tunnel traction motor truck, 256V battery forklift, 256V low speed car, etc.
Note: It can be counterweighted according to the demand, in addition, both charging port and discharging port can be customized into the same port and different port as required.
