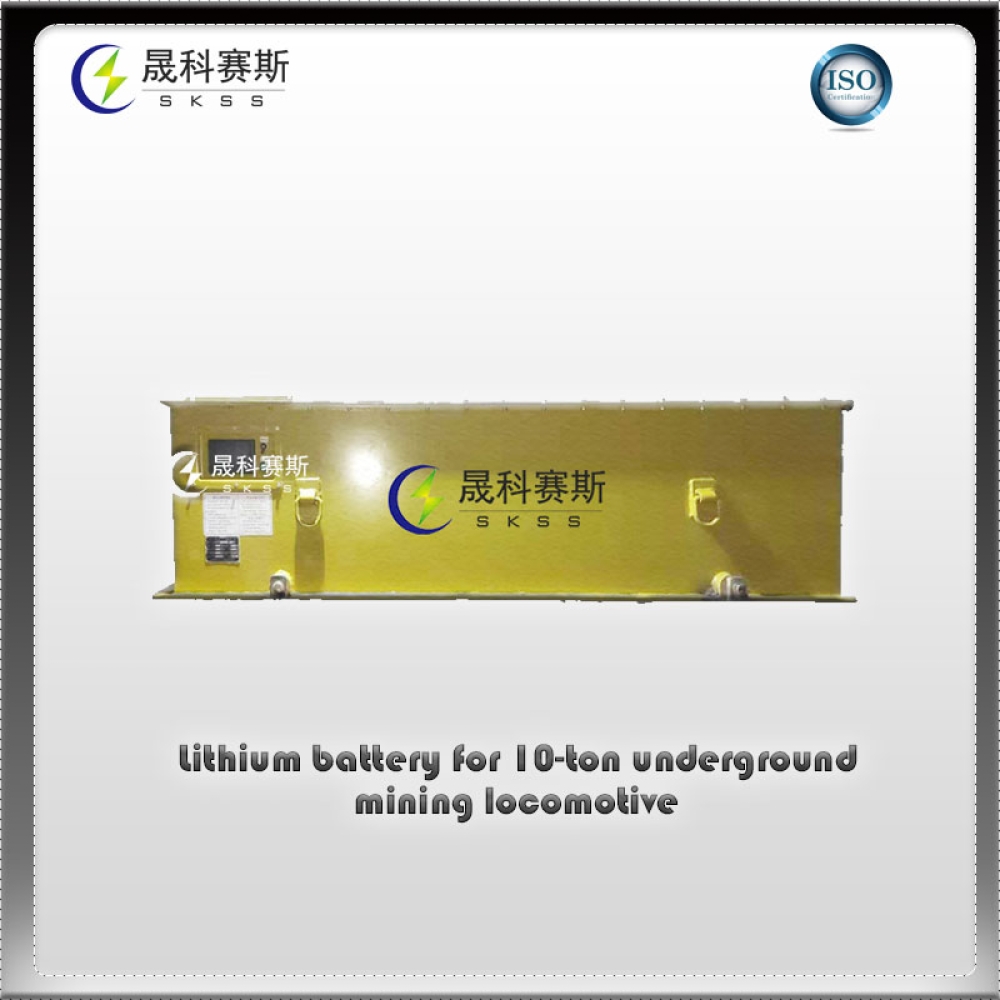

10 ton electric locomotive lithium battery

Model: DXBL76800/256C
10 ton electric locomotive lithium battery: The 10 ton wire locomotive canceled the wire and turned into a 10 ton lithium battery train power supply
Rated voltage: 256V
Rated capacity: 300Ah (can be customized upon request)
Charging current: 100A
Continuous discharge current: 200A
Peak discharge current: 500A
Electricity: 76.8KW.h
Weight: 1600kg
Charging time: 3h
Dimensions: 1750*1050*400mm
Temperature range: -20°C ~ 60°C
Protection class: IP65
Warranty: 3 years, lifetime maintenance
Product DescriptionFactory
Model: DXBL76800/256C
10 ton electric locomotive lithium battery: The 10 ton wire locomotive canceled the wire and turned into a 10 ton lithium battery train power supply
Rated voltage: 256V
Rated capacity: 300Ah (can be customized upon request)
Charging current: 100A
Continuous discharge current: 200A
Peak discharge current: 500A
Electricity: 76.8KW.h
Weight: 1600kg
Charging time: 3h
Dimensions: 1750*1050*400mm
Temperature range: -20°C ~ 60°C
Protection class: IP65
Warranty: 3 years, lifetime maintenance
Protection function: low battery reminder, overcurrent, overheating, short circuit protection, insulation detection, overvoltage, waterproof, low temperature protection, etc.
Scope: 10 ton battery locomotive, mining battery car, tunnel traction locomotive, etc.
Note: The counterweight can be made as required, and the charging port and discharging port can be customized into the same port and the same port as required.
